高精度高可靠温补晶振VTX 7T系列选型手册

高可靠高精度温补晶振VTX 7T系列选型表

2011/65/EU RoHS compliant

From design to production in Switzerland

Frequency range 可选择 5.000 - 75.000MHz

标准频率（推荐） 5, 10, 12, 12.8, 13, 15.36, 16, 16.384, 19.2, 19.44, 20 25, 26, 27, 30, 30.72, 32, 40 and 50 MHz

频率稳定度

VS.temperature(referenced to (FMAX+FMIN)/2) ≤ ±0.50ppm      over -40 to +85℃ (∗)

VS.supply voltage changes(referenced to frequency at nominal supply) ≤ ±0.1ppm       ±5 %

VS.load changes(referenced to frequency at nominal load) ≤ ±0.1ppm       ±5 %

VS.aging@+40℃ ≤ ±1.0ppm      1st year

G-sensitivity(注：重力加速度指标) 2.0 ppb/g         per axis

Frequency tolerance ex. factory @ +25℃ 0 to +1.0ppm      @+25℃

Supply voltage (nominal value ±5 %) +2.8V,+3.3V or +5.0V                  (∗)

Output signal Clipped sine wave (LV)CMOS           (∗)

Output level >0.8 Vp-p VOH > 0.9∗Vcc / VOL < 0.1∗Vcc

Output load 10 kΩ // 10 pF 15 pF Max.

Current consumption, depending on frequency 1.5 to 7 mA 2 to 10 mA

Electronic Frequency Control (EFC) ΔF = ±5 to ±10ppm          positive slope            (∗)

Control voltage (Vc) +1.50V ±1.0V for 3.3 V+     +2.50V ±2.0V for 5.0V    (∗)

EFC input impedance >100 kΩ

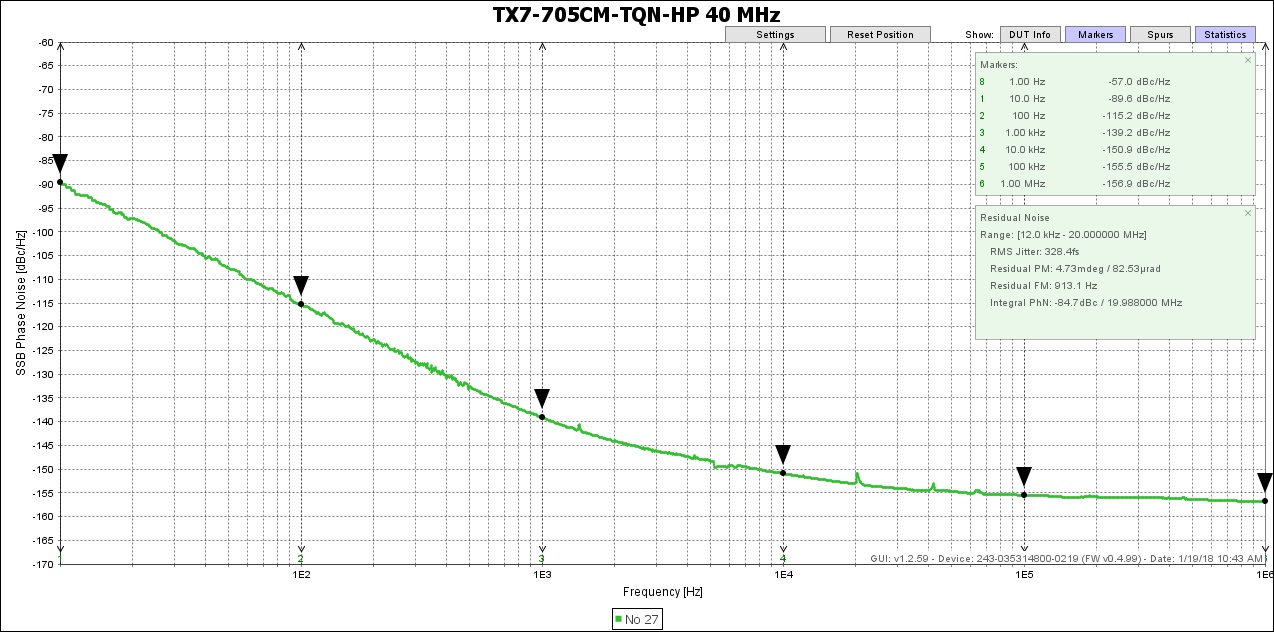

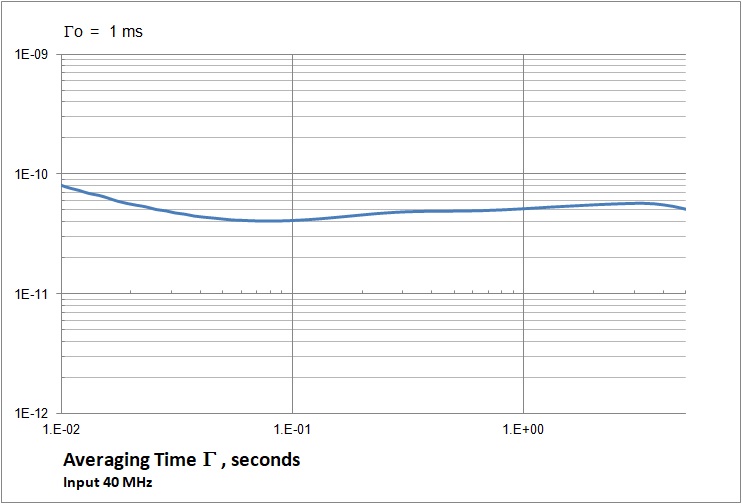

Phase noise (typical value for 40 MHz ) -90 dBc/Hz @10Hz

-118 dBc/Hz @100Hz

-140 dBc/Hz @1KHz

-151 dBc/Hz @10KHz

-156 dBc/Hz @100KHz

Operating temperature range -40℃ to +85℃

Storage temperature range -55℃ to +105℃

Reflow Profiles as per IPC/JEDEC J-STD-020C ≤ 260℃ over 10 sec. Max.

Moisture sensitivity Level 1 (unlimited)

(∗) See available options           Note: Unless otherwise specified conditions are @+25℃

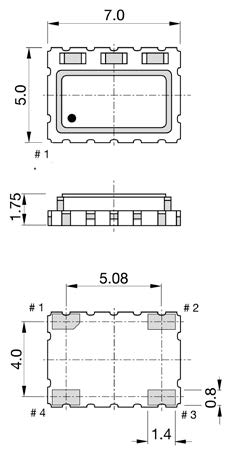

Pin function

Pin function
# 1 Vc (EFC) for VC-TCXO GND or NC for TCXO
# 2 GND
# 3 Output
# 4 Vcc

Soldering pattern

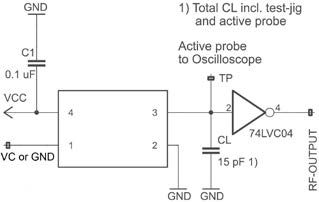

Test circuit for CMOS

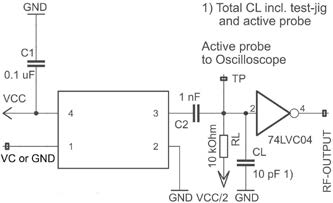

Test circuit for Clipped Sine Wave

Ordering code(产品型号编码规则)

(0)7T-(1)(2)-(3)(4)-(5)-(6)MHz

０：产品类型，可选项：ＴＸ，ＶＴ，　　　　TX=TCXO(温补型)，VT=VC-TCXO（压控温补型）

１：输出信号波形，可选项：Ｈ、Ｃ，　　　　H=(LV)CMOS， C=Clipped sine wave

２：供电电压，可选项：28、30、33、50　　　28=2.8V，30=3.0V，33=3.3V，50=5.0V

３：工作温度范围，可选项如下表所示

JK = -20℃ to +70℃

LN = -30℃ to +85℃

NN = -40℃ to +85℃

NP = -40℃ to +95℃

NR = -40℃ to +105℃

QN = -55℃ to +85℃

４：频率稳定度，可选项如下表所示

u10 = ±0.10ppm

u25 = ±0.25ppm

u28 = ±0.28ppm

u50 = ±0.50ppm

1u0 = ±1.00ppm

1u5 = ±1.50ppm

５：(仅针对VT类型)压控区间(Pulling range)

V05 = 1.5±1.0V ±5ppm

V10 = 1.5±1.0V ±10ppm

X05 = 2.5±2.0V ±5ppm

X10 = 2.5±1.0V ±10ppm

Z=special spec

６：频率

　　可选的标准频率范围：5, 10, 12, 12.8, 13, 15.36, 16, 16.384, 19.2, 19.44, 20 25, 26, 27, 30, 30.72, 32, 40， 50 (MHz)

例: TX7T-C33-NNu50-40.000MHz

Frequency stability vs. temperature

ppm

≤±0.10 ≤±0.25 ≤±0.28 ≤±0.50 ≤±1.00 ≤±1.50

-20℃ to +70℃
△

○

○

○

○

○

-40℃ to +85℃

△

○

○

○

○

○

-40℃ to +95℃

△

△

△

△

△

○

-40℃ to +105℃

△

△

△

△

△

△

-55℃ to +85℃

×

×

×

△

△

△

Δ:Ask factory Ο:Available X:Not available

Environmental conditions

Test
IEC 60068 Part...

IEC 60679-1 Clause
MIL-STD-202G Method MIL-STD-810F Method MIL-STD-55310D clause Test conditions(IEC)

Sealing tests (if applicable) 2-17 5.6.2 112E 3.6.1.2 Gross leak: Test Qc, Fine leak: Test Qk

Solderability Resistance to soldering heat
2-20 2-58
5.6.3
208H 210F
3.6.52     3.6.48 Test Ta method 1, Test Td1 method 2, Test Td2 method 2

Shock * 2-27 5.6.8 213B 516.4 3.6.40 Test Ea, 3 x per axis 100 g,6 ms half-sine pulse

Vibration, sinusoidal* 2-6 5.6.7.1 201A 204D 516.4-4 3.6.38.1   3.6.38.2 Test Fc, 30 min per axis, 1 oct/min 10 Hz – 55 Hz 0,75 mm; 55 Hz – 2 kHz, 10g

Vibration, random* 2-64 5.6.7.3 214A 514.5 3.6.38.3    3.6.38.4 Test Fdb

Endurance tests

-ageing

-extended ageing

5.7.1

5.7.2
108A 4.8.35
30 days @85℃

1000 h, 2000 h, 8000 h @85℃

Other environmental conditions on request

输出特性:

LVCOMS: 8Vp-p

-95dBc/Hz@10Hz (for 40MHz)

-110dBc/Hz@10Hz (for 10MHz)
